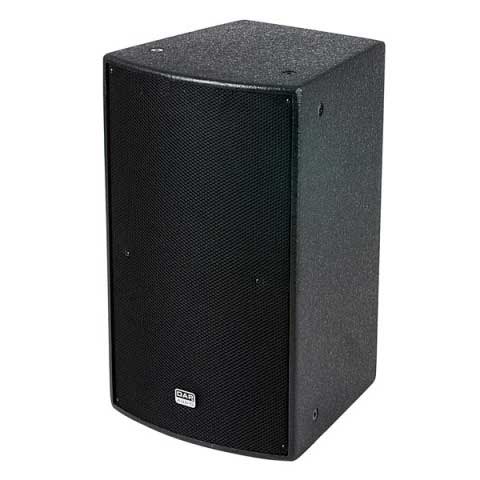

DAP-AUDIO DRX-8A Активная акустическая система

Model:

DRX-8A

System:

Bi-Amp

Continuous power

LOW:150 W / HIGH: 25W

Total hormonic distortion

LOW-input  /-5dBu 100Hz, out load 40hms, THD<0.5%

Hi-input  / -8dBu 15 kHz, out load 80hms, THD<0.5%

S/N Ratio:

LOW:> 80dBu 80 / Hi:>65dBu

Line input level

-5dBu±1dBu

Input impedance

line15kΩ input

Indicator

Power indicator - Clip indicator

Power supply

110-120V-60Hz / 220-240V - 50/60Hz

External controls

Volume - Master Switch/ AC select

SPL@1m

94dB / 119.5 dB(Max.)

Frequency Response

68Hz- 20kHz - 6dB

Woofer

8"Ø 203mm - 1.5" Voice Coil

Driver

1" Driver - 1" Voice Coil

Horn Coverage(h*V)

50ºx50º

Enclosure Construction

15mm plywood cabinet, glued and reinforced,

resistant black paint; metal grille, rubber foot


Mounting

One ABS plastic standard pole-mount

Dimensions (HxWxD)

542x360x352mm
